【Unity】在编辑器里仅移动或旋转父物体，而不影响子物体

仓库

仓库链接：ModiParentOnly: 一种Unity编辑器实用工具，按住Shift键就可以在移动或旋转物体时，使子物体们保持原样。

以后我写文章基本都会放到仓库里，方便获取最新代码。

前提

有时候想调整父物体的位置或角度，但又希望子物体能保持原状。Unity似乎没有直接提供这种功能，所以做了个扩展。

使用方式

选中你想调整的父物体，移动或旋转时按住“Shift”键就会生效，松开则失效。你可以在一次移动过程中多次开关此功能，无论如何，此次操作都能够正常地撤销和重做。

自带一个按钮，你可以使用Unity编辑器顶部菜单栏的”Tools/移动到子物体位置中心”，来把选中的所有父物体，各自移动到其子物体们的中心位置。

如果你不喜欢Shift键，可以改成其他快捷键。如果用来调整UI边框，推荐使用大写锁定键（CapsLock），这样就不会和锁定比例（Shift）、固定单位（Ctrl）和移动视图（Alt）冲突了。

private static EventModifiers Key = EventModifiers.Shift;
//修改为你喜欢的快捷键，例如
private static EventModifiers Key = EventModifiers.CapsLock; //大写锁定键

//也可以让两个快捷键都能生效
private static EventModifiers Key = EventModifiers.Shift| EventModifiers.CapsLock;

支持同时操作多个父物体，在同时移动时会为其他非活跃父物体绘制坐标轴。需要同时旋转的情况似乎不多见，就没画了。

也支持操作RectTransform。理论上Transform的子类都可以，原理就是不断修改子物体们的位置和角度使它们保持原样，没有什么破坏性操作。

代码

#if UNITY_EDITOR
using UnityEngine;
using UnityEditor;

[InitializeOnLoad]
public class ModiParentOnly
{
    public static ModiParentOnly _ins;

    //******修改这一行代码改变快捷键******
    private static EventModifiers Key = EventModifiers.Shift;
    private bool _prevHeld;
    private bool _currentHeld;

    static ModiParentOnly()
    {
        _ins = new ModiParentOnly();
    }
    private ModiParentOnly()
    {
        SceneView.duringSceneGui += KeyHeld;
    }
    ~ModiParentOnly()
    {
        StopTracking();
        SceneView.duringSceneGui -= KeyHeld;
    }
    private void KeyHeld(SceneView view)
    {
        if (Event.current != null)
        {
            _currentHeld = (Event.current.modifiers & Key) != 0;
            if (_currentHeld != _prevHeld)
            {
                if (_currentHeld)
                {
                    StartTracking();
                }
                else
                {
                    StopTracking();
                }
            }
            _prevHeld = _currentHeld;
        }
    }

    private struct TransformValueInfo
    {
        public Vector3 position;
        public Quaternion rotation;
        public TransformValueInfo(Transform transform)
        {
            position = transform.position;
            rotation = transform.rotation;
        }
        public void Get(Transform transform)
        {
            position = transform.position;
            rotation = transform.rotation;
        }
        public bool IsSameTo(Transform transform)
        {
            return position == transform.position &&
                rotation == transform.rotation;
        }
        public void ApplyTo(Transform transform)
        {
            transform.SetPositionAndRotation(position, rotation);
        }
    }

    private class ParentInfo
    {
        public Transform target;
        public TransformValueInfo last;
        public TransformValueInfo[] children;

        public ParentInfo(Transform parent)
        {
            target = parent;
            last = new TransformValueInfo(parent);
            children = new TransformValueInfo[parent.childCount];
            for (int i = 0; i < parent.childCount; i++)
            {
                var trans = parent.GetChild(i).transform;
                children[i] = new TransformValueInfo(trans);
            }
        }
    }
    private ParentInfo[] _infos;

    public void ModiOnly(Transform parent,System.Action<Transform> modi)
    {
        var info = new ParentInfo(parent);
        modi?.Invoke(parent);
        RestoreChildren(info);
    }

    private void StartTracking()
    {
        var selections = Selection.gameObjects;
        _infos = new ParentInfo[selections.Length];
        for (int i = 0; i < _infos.Length; i++)
        {
            _infos[i] = new ParentInfo(selections[i].transform);
        }
        SceneView.duringSceneGui += Tracking;
    }
    private void StopTracking()
    {
        _infos = null;
        SceneView.duringSceneGui -= Tracking;
    }
    private void Tracking(SceneView view)
    {
        if (_infos == null) return;
        // 检测父物体变化
        for (int i = 0; i < _infos.Length; i++)
        {
            var info = _infos[i];
            DrawAxes(info.target,view.camera);
            if (!info.last.IsSameTo(info.target))
            {
                RestoreChildren(info);
                info.last.Get(info.target);
            }
        }
    }
    private void DrawAxes(Transform target,Camera camera)
    {
        if (!target) return;
        if (Selection.activeTransform == target) return;
        // 绘制模式判断
        if (Tools.current != Tool.Move) return;

        Camera cam = camera;
        Vector3 origin = target.position;

        // 计算基于摄像机距离的尺寸
        float distance = Vector3.Distance(cam.transform.position, origin);
        float baseScale = distance / 5f;
        float axisLength = 0.6f * baseScale;
        float arrowSize = 0.1f * baseScale;
        float lineThickness = 1.7f;

        // 获取方向向量
        bool isGlobal = Tools.pivotRotation == PivotRotation.Global;
        Vector3 right = isGlobal ? Vector3.right : target.right;
        Vector3 up = isGlobal ? Vector3.up : target.up;
        Vector3 forward = isGlobal ? Vector3.forward : target.forward;

        // 带抗锯齿的线段绘制
        Handles.zTest = UnityEngine.Rendering.CompareFunction.LessEqual;

        // X轴
        using (new Handles.DrawingScope(Color.red))
        {
            Handles.DrawLine(origin, origin + right * axisLength, lineThickness);
            DrawArrow(origin + right * axisLength, right, arrowSize);
        }

        // Y轴
        using (new Handles.DrawingScope(Color.green))
        {
            Handles.DrawLine(origin, origin + up * axisLength, lineThickness);
            DrawArrow(origin + up * axisLength, up, arrowSize);
        }

        // Z轴
        using (new Handles.DrawingScope(Color.blue))
        {
            Handles.DrawLine(origin, origin + forward * axisLength, lineThickness);
            DrawArrow(origin + forward * axisLength, forward, arrowSize);
        }
    }
    private static void DrawArrow(Vector3 tipPos, Vector3 direction, float size)
    {
        float visibleSize = size * 1f;
        Handles.ConeHandleCap(0,tipPos - 0.3f * visibleSize * direction,Quaternion.LookRotation(direction),visibleSize,EventType.Repaint);
    }
    private void RestoreChildren(ParentInfo info)
    {
        if (info.children.Length == 0) return;
        for (int i = 0; i < info.children.Length; i++)
        {
            var child =info.target.GetChild(i);
            Undo.RecordObject(child,"RestoreChild");
            info.children[i].ApplyTo(child);
        }
    }

    [MenuItem("Tools/移动到子物体位置中心")]
    public static void ToCenter()
    {
        var parents = Selection.gameObjects;
        foreach(var p in parents)
        {
            var trans = p.transform;
            Vector3 sum = Vector3.zero;
            for (int i = 0; i < trans.childCount; i++)
            {
                sum += trans.GetChild(i).position;
            }
            _ins.ModiOnly(trans, t => t.position = sum / trans.childCount);
        }
    }
}
#endif

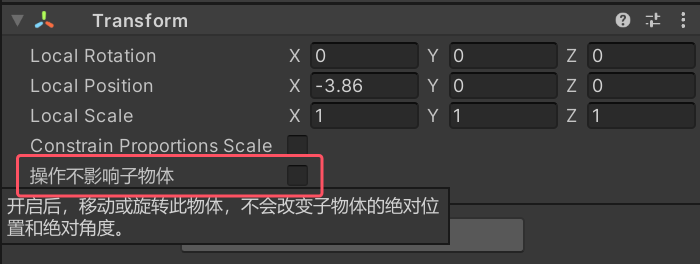

旧版实现

旧版编辑器的实现功能更加受限，并且有一定的冲突风险，不推荐使用。

无论哪一种实现，原理都很简单粗暴，就是移动前把原来的位置和角度记录下来，没什么好说的。
